Victor™ Knee
By
College Park
Quick Links
| Part # | Description |
|---|
Product Information

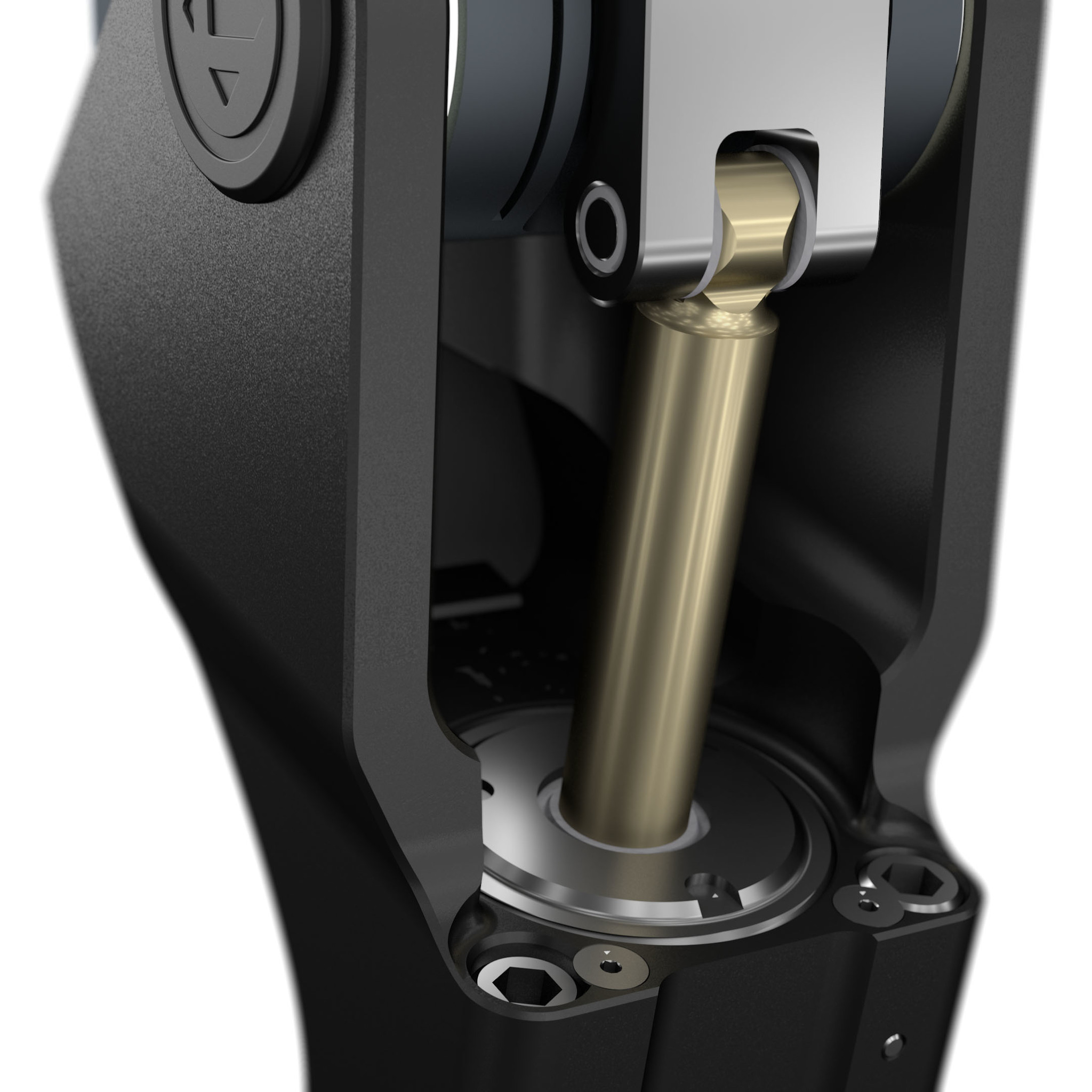

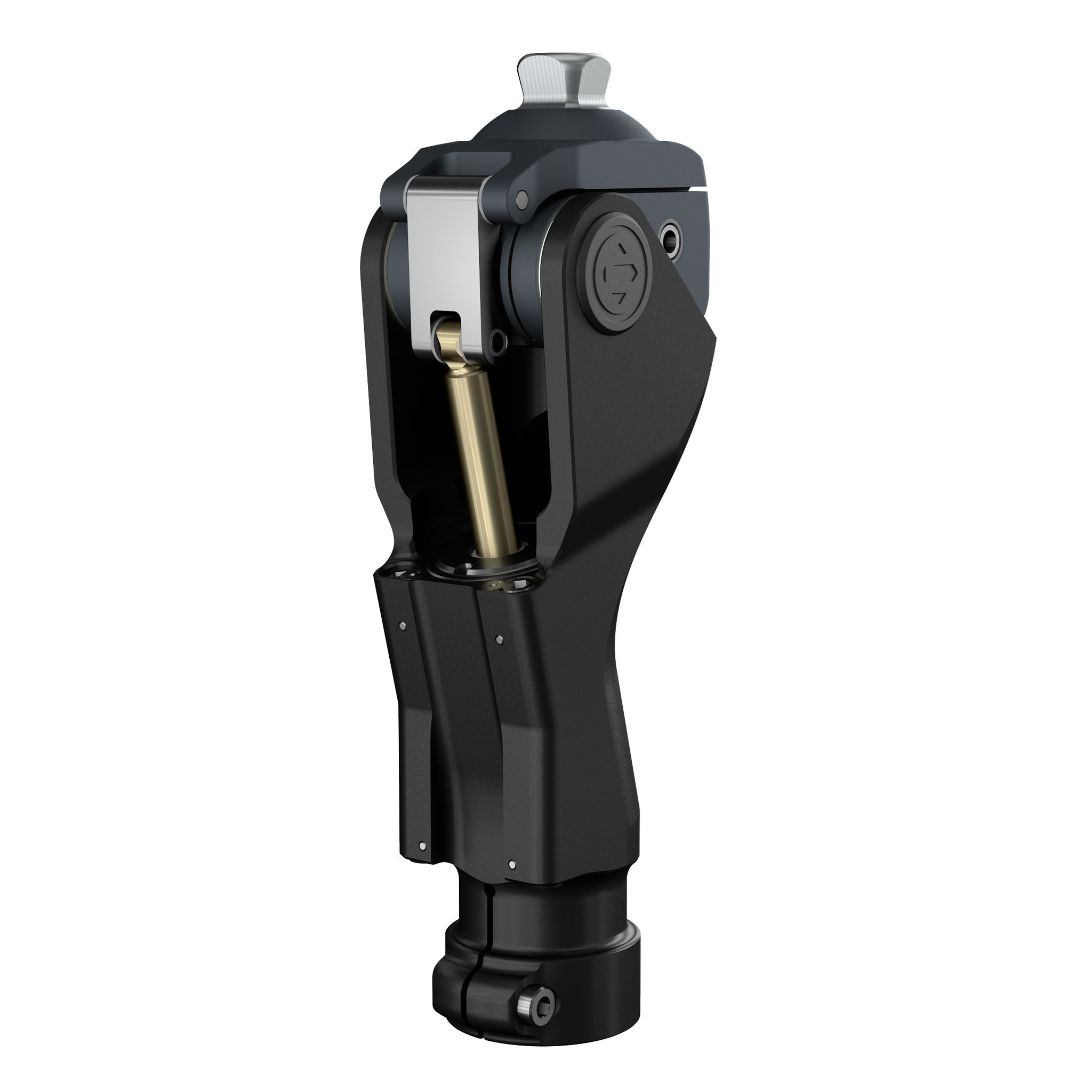

The Victor™ knee is a single axis, pneumatic knee joint that features a friction brake to control stance phase. This knee is designed for low to moderate activity users, as it can adjust to accommodate both slow and fast paced walking. The Victor™ knee works well for patients who are looking to increase their activity levels following rehabilitation.
- Weight-activated stance control
- Variable cadence
- Integrated friction brake
- Easily adjustable
Specifications
- Activity Level: K1, K2
- Knee Design Type: Knee-Shin System
- Axis: Single Axis
- Swing Phase: Pneumatic
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 710
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 145 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: 60 days from invoice date
- Warranty: 24 months from ship date
Sold each.
| HCPCS: | L5822, L5845, L5850 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Hip Disarticulation, Knee Disarticulation |
| Activity Level: | K1 (Low), K2 (Moderate) |
| Swing Phase: | Pneumatic |
| Stance Phase: | Friction |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Tube Clamp |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs) |
| Material: | Aluminum |
