Soleus Foot
Quick Links
| Part # | Description |
|---|
Product Information

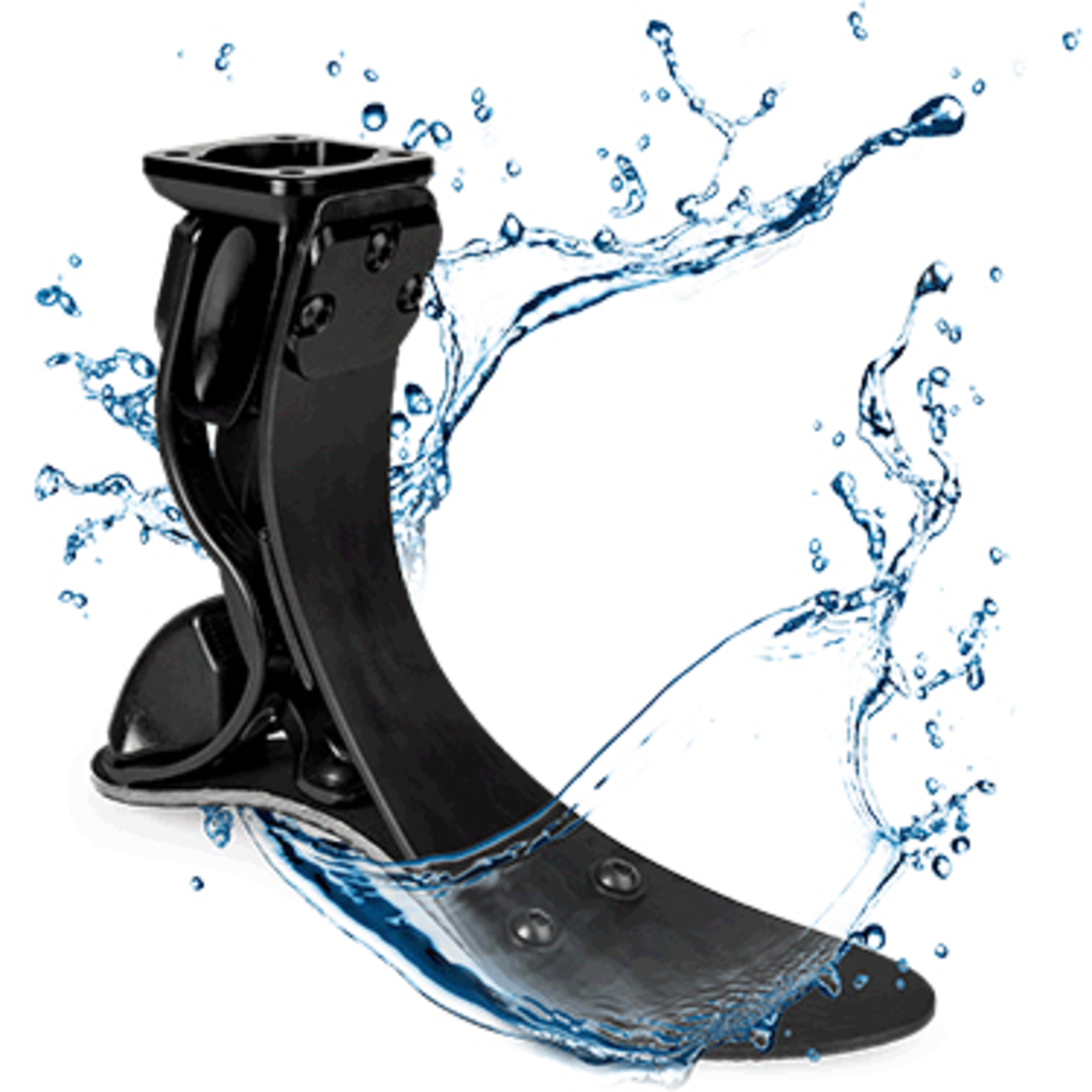

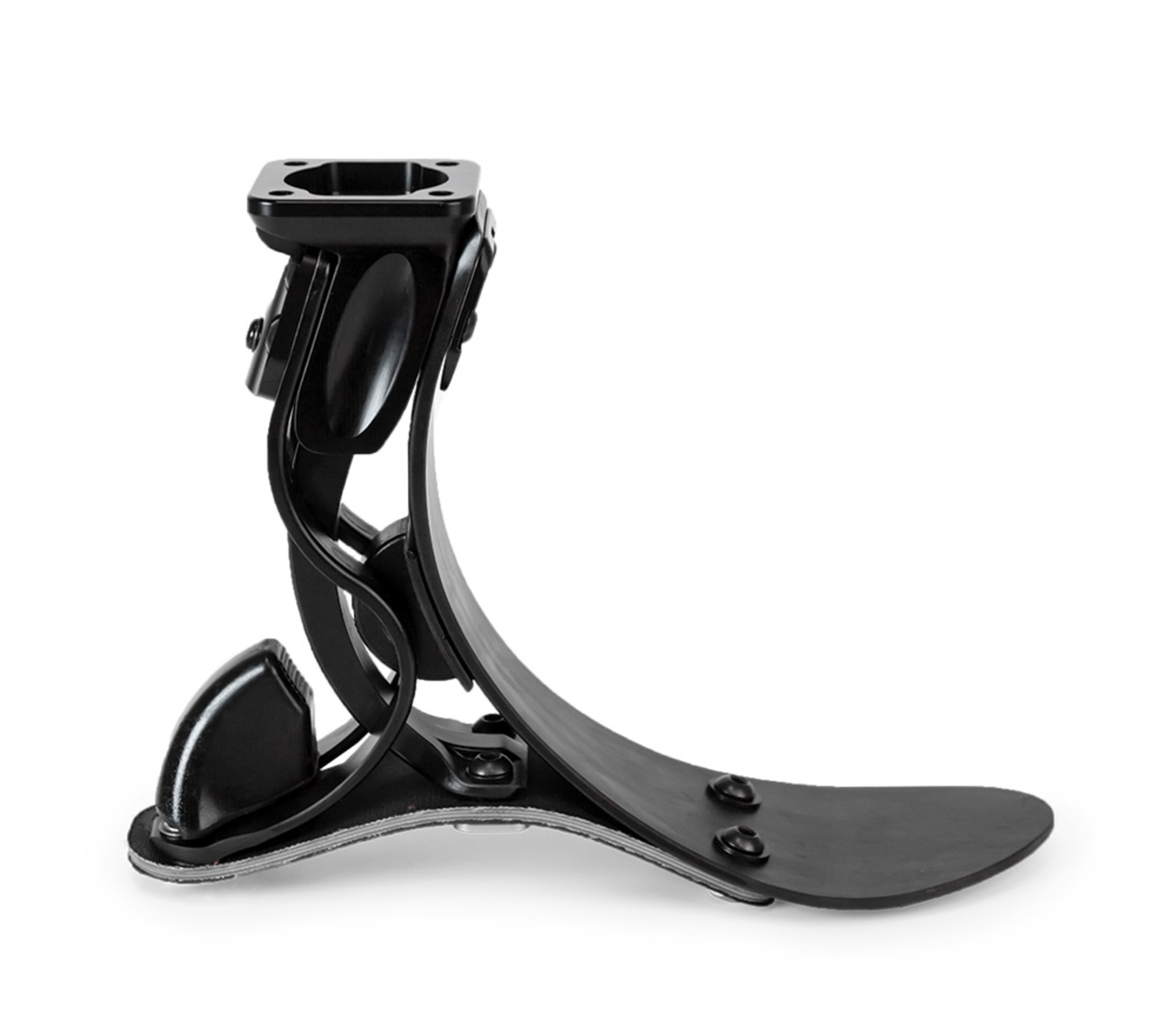

The Soleus® produces natural movement by incorporating Integrated Spring Technology (iST) and provides smooth transition and a superior range of motion. The scaled design also provides 10 mm of vertical compliance for unbeatable comfort. Involving the entire foot in absorbing and returning energy, the Soleus® accommodates moderate to active lifestyles.
- Intelliweave® composite material
- Personalized Housing Color: Midnight Black, Tactical
- Spectra sock included
- Pair with the College Park Torsion Adapter of your choice to maximize product performance
Further configurations are available upon request for special situations.
Specifications
- Foot Type: Flex Walk System
- Material Composition: Carbon Fiber
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K3, K4
- Foot Shell: Not Included
- Foot Shell Color: Caucasian, Tan, Brown, Jet Black
- Sandal Toe: Yes
- Waterproof: Yes
- Split Keel: No
- Adjustable Heel: No
- Weight Rating: 275lbs (125kg)
- Stiffness Categories: 11-76
- Sizes (cm): 21-30
- Product Weight (g): 667 (with Foot Shell and Sock)
- Build Height: 6.4in (163mm)-7.6in (193mm)
- Heel Height: 3/8in (10mm)
- Connector: 4-Hole
- Trial Period: 60 days from purchase date
- Warranty: 36 months from purchase date

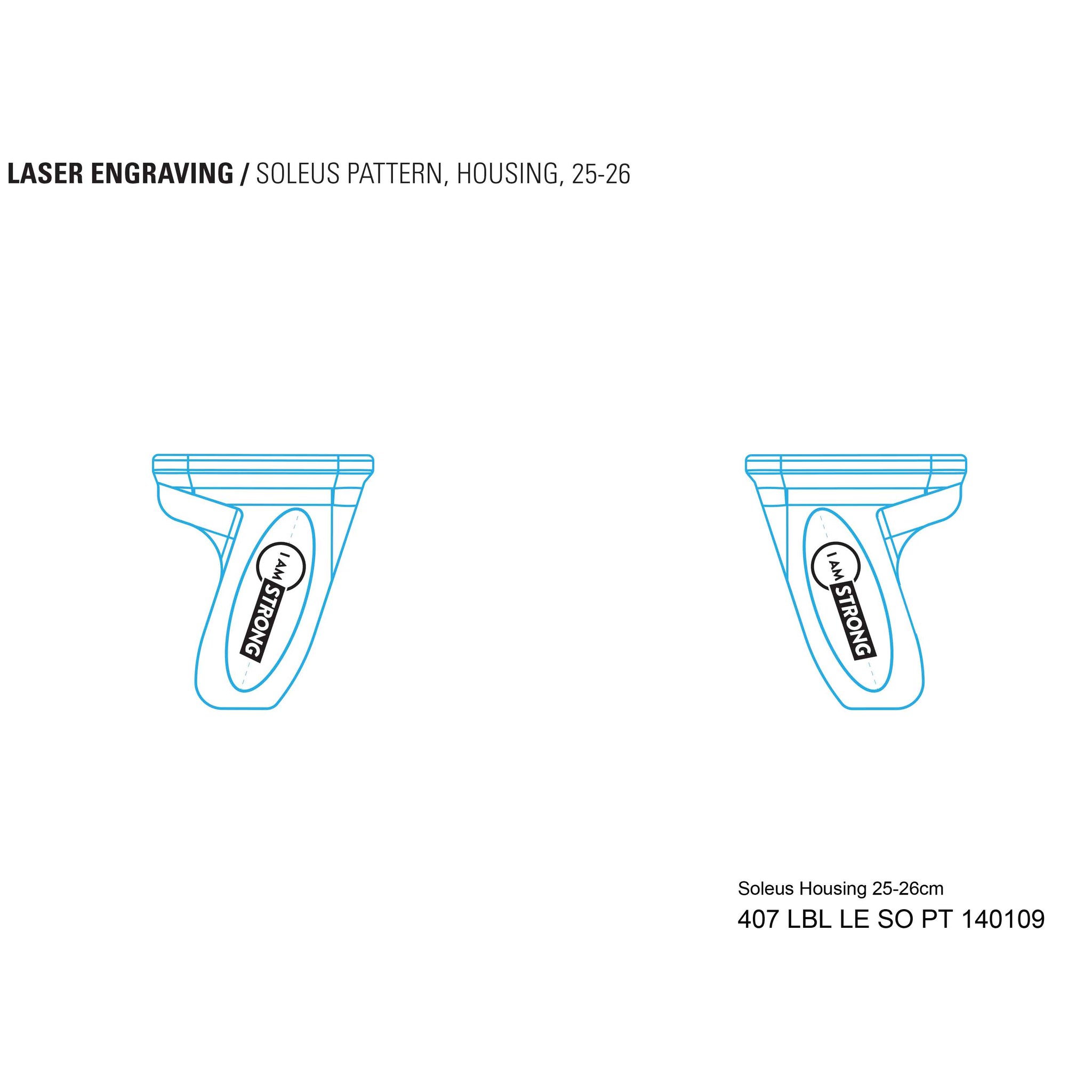

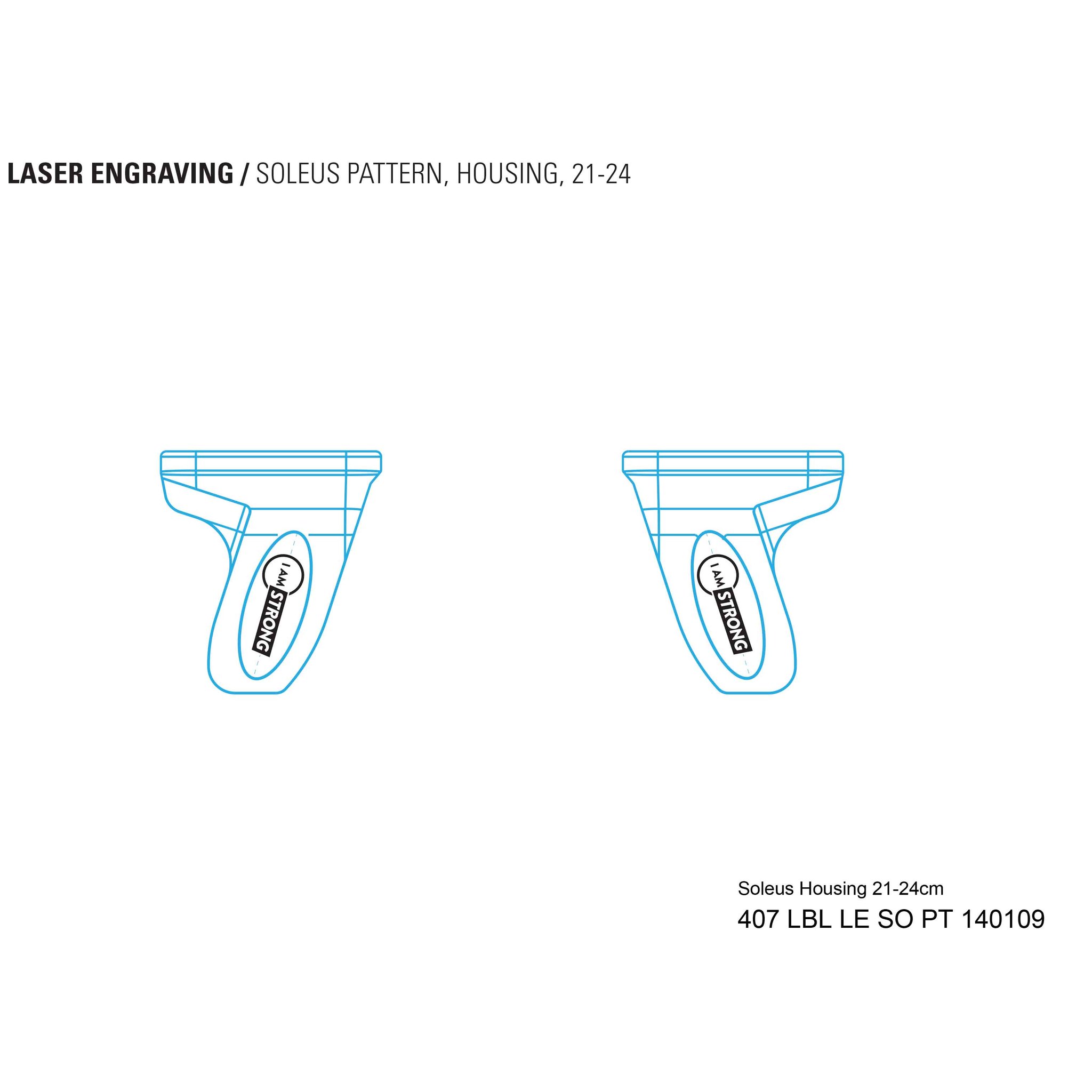

For custom engraving, please add a note to your order specifying the option you would like to select – "Flame On", "Heart and Soleus", "Home of The Brace", or "I am Dynamic". No additional charge. Please allow two additional days for processing.
Note: Foot shell sold separately. Please see related items below for more information on foot shell ordering.
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
| HCPCS: | L5981 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K3 (High), K4 (Very High) |
| Foot Type: | Flex-Walk |
| Build Height: | 127-177 mm (5-6.9 in), 178 mm+ (Greater than 7 in) |
| Foot Shell Included: | No |
| Key Features: | Waterproof |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs) |
| Material: | Carbon Composite |
