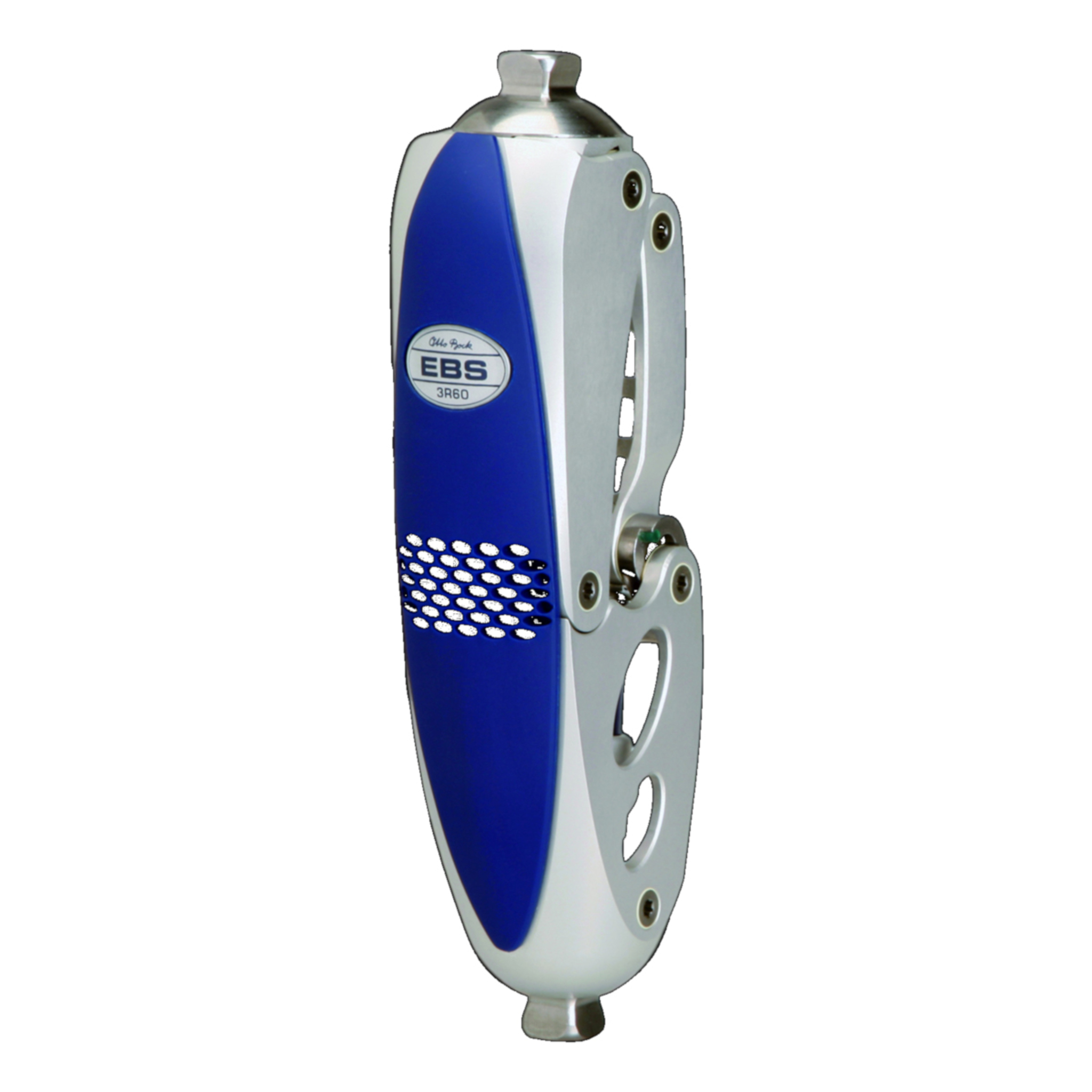

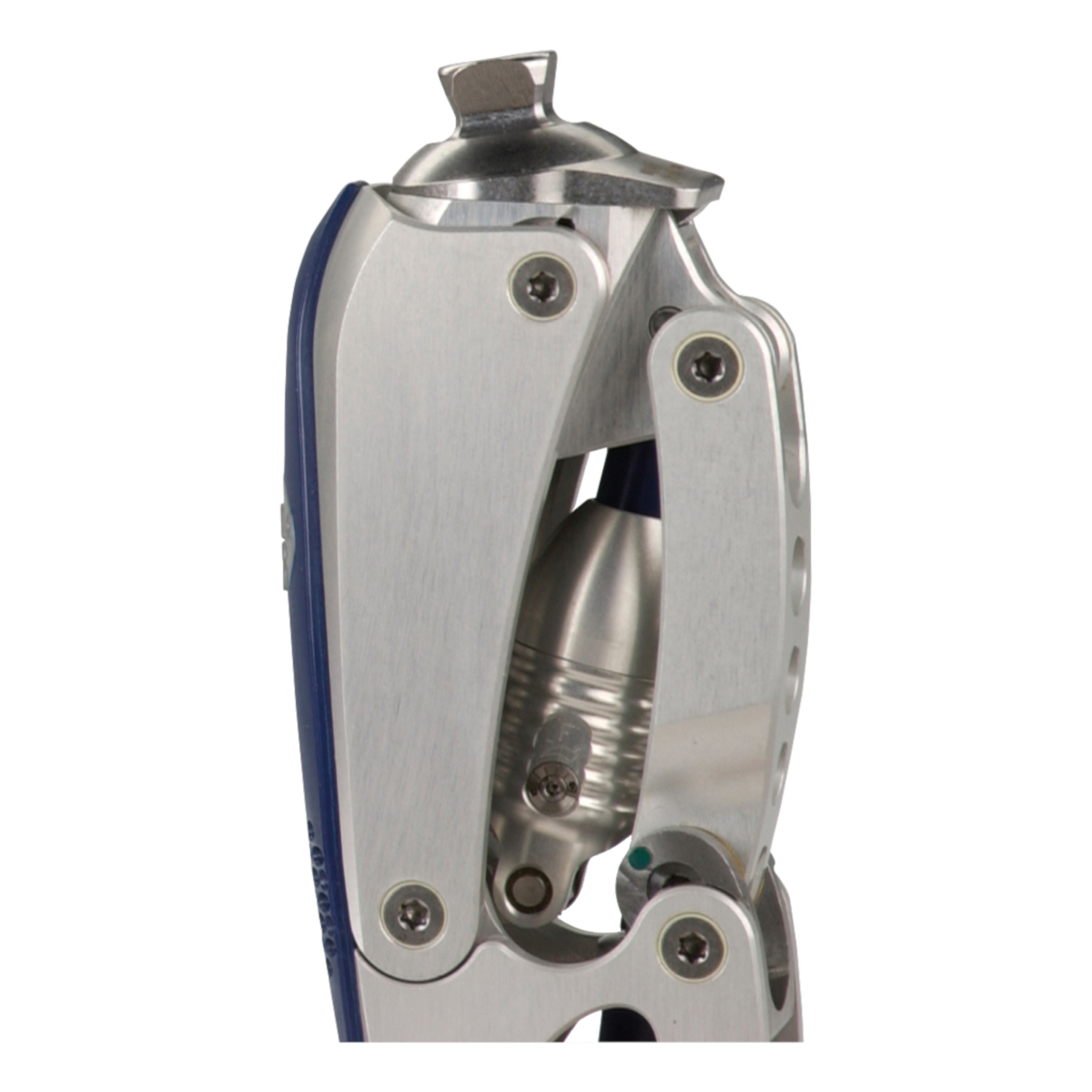

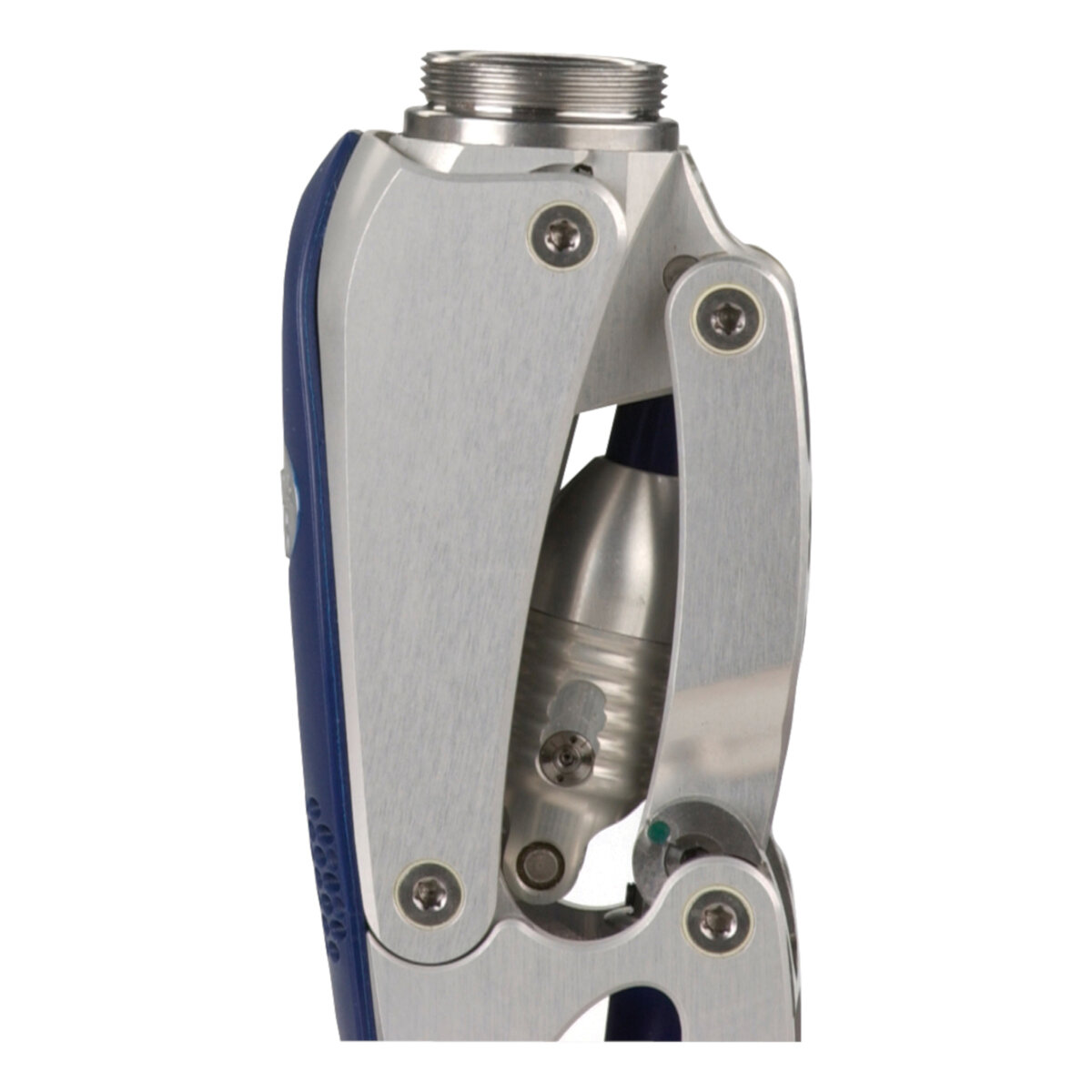

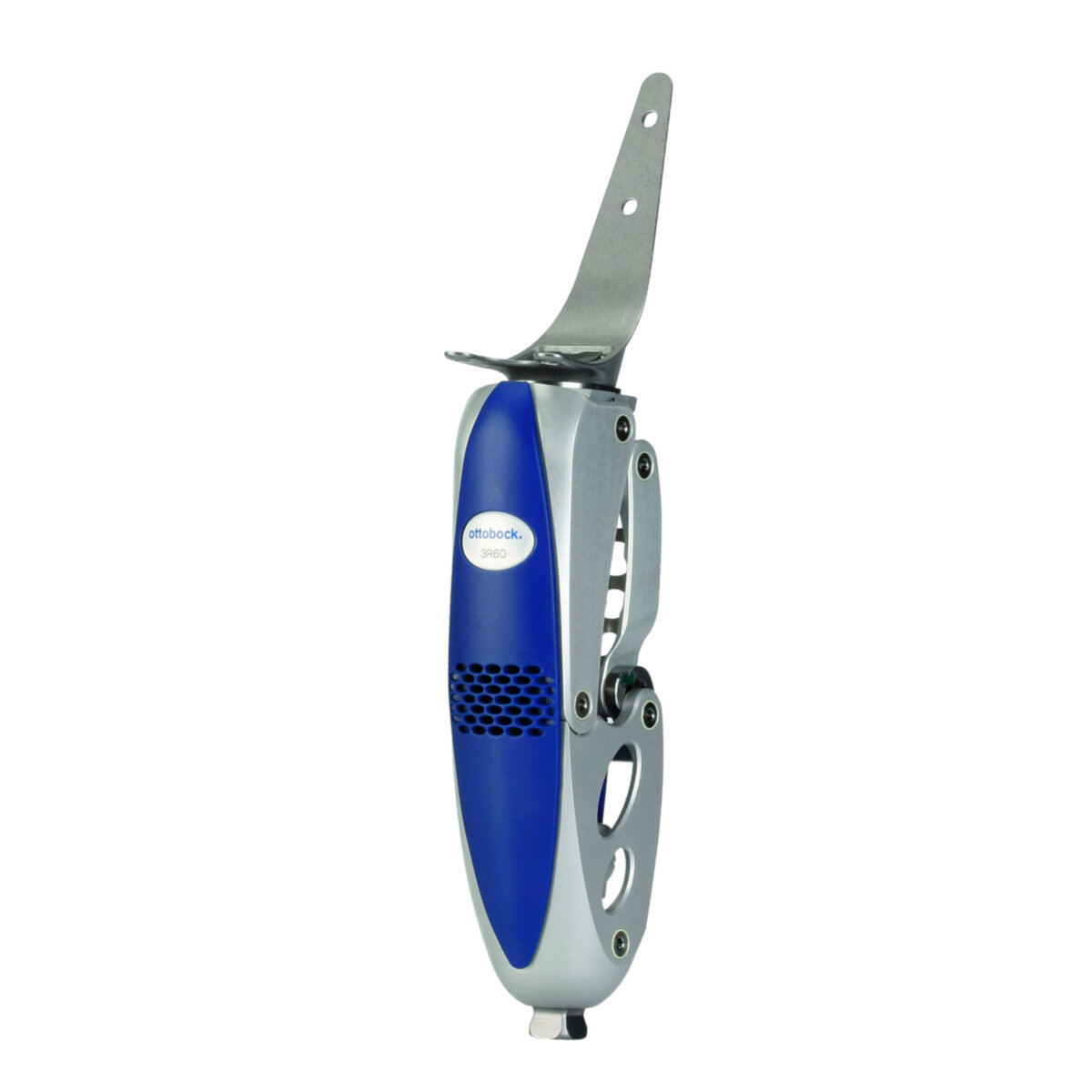

Modular Polycentric EBS Knee Joint
By
ottobock
Quick Links
| Part # | Description |
|---|
Product Information
The EBS modular knee features a hydraulic system that controls the behavior of the knee during swing phase. The dampening values of the hydraulic system allows patients to initiate swing phase and use a wide range of walking speeds.
- Offers relief for the back and residual limb due to controlled knee flexion
- Flexion and extension dampening can be individually adapted
- Knee is easily adjustable
Specifications
- Activity Level: K3
- Knee Design Type: Polycentric, Hydraulic Swing, Mechanical Stance Phase Lock
- Axis: Polycentric
- Swing Phase: Hydraulic
- Stance Phase: Friction, Mechanical Lock
- Control Frame Material: Aluminum
- Product Weight (g): 845
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 175 Degree
- Proximal Connection: Refer to chart below
- Distal Connection: Pyramid Adapter
- Trial Period: N/A
- Warranty: 24 months from delivery date
- Build Height: 207
Sold each.
| HCPCS: | L5814, L5848 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Hemipelvectomy, Hip Disarticulation, Knee Disarticulation |
| Activity Level: | K3 (High) |
| Swing Phase: | Hydraulic |
| Stance Phase: | Friction |
| Axis Type: | Polycentric |
| Proximal Connection: | Angled Male Pyramid, Lamination Anchor, Male Pyramid Adapter, Threaded Adapter |
| Distal Connection: | Male Pyramid Adapter |
| Material: | Aluminum |
