3R93 Modular Brake Knee with Lock
By
ottobock
Quick Links
| Part # | Description |
|---|
Product Information

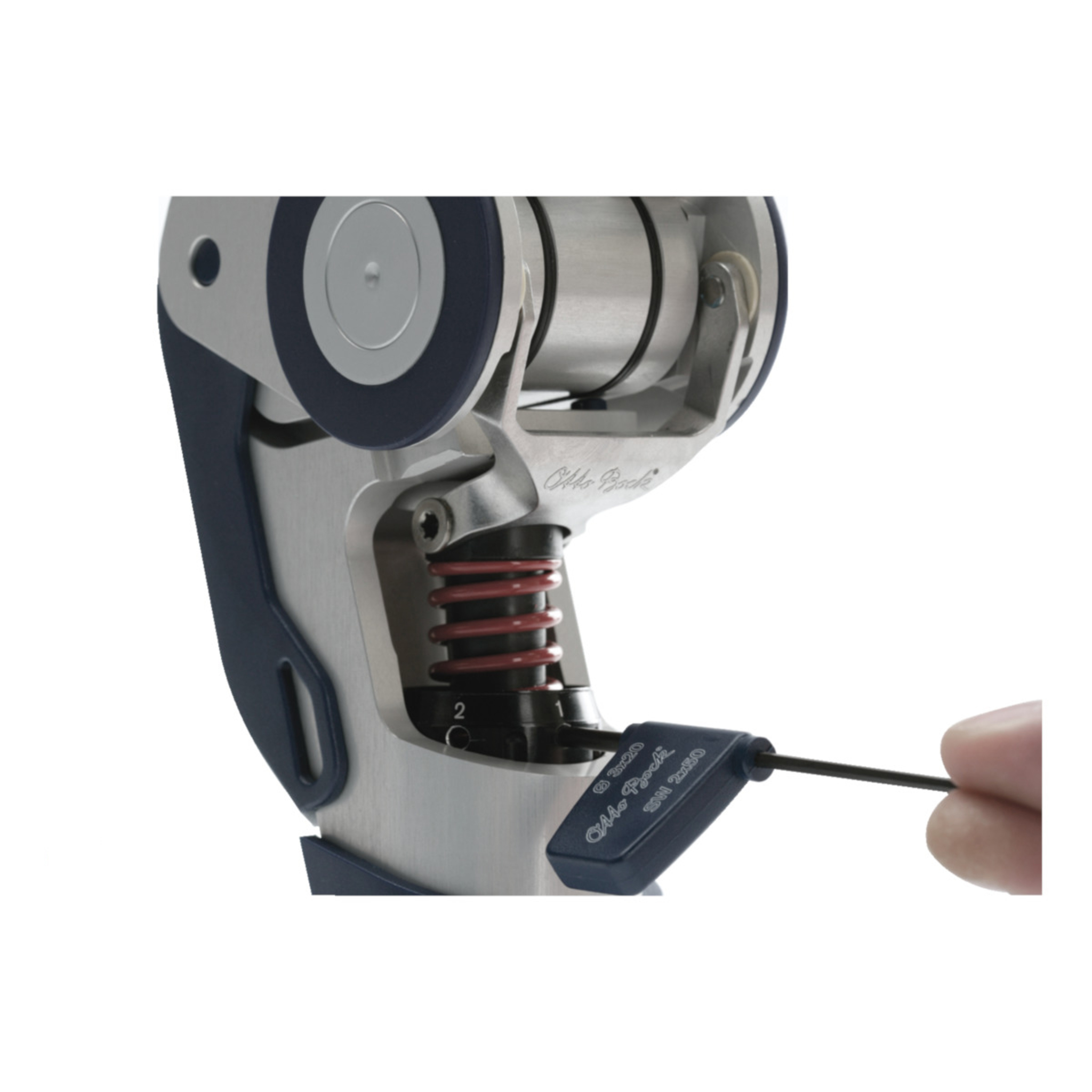

The 3R93 Modular Brake Knee features a load-dependent brake mechanism and an optional locking function. It has an integrated, adjustable extension assist springs that control the swing phase.

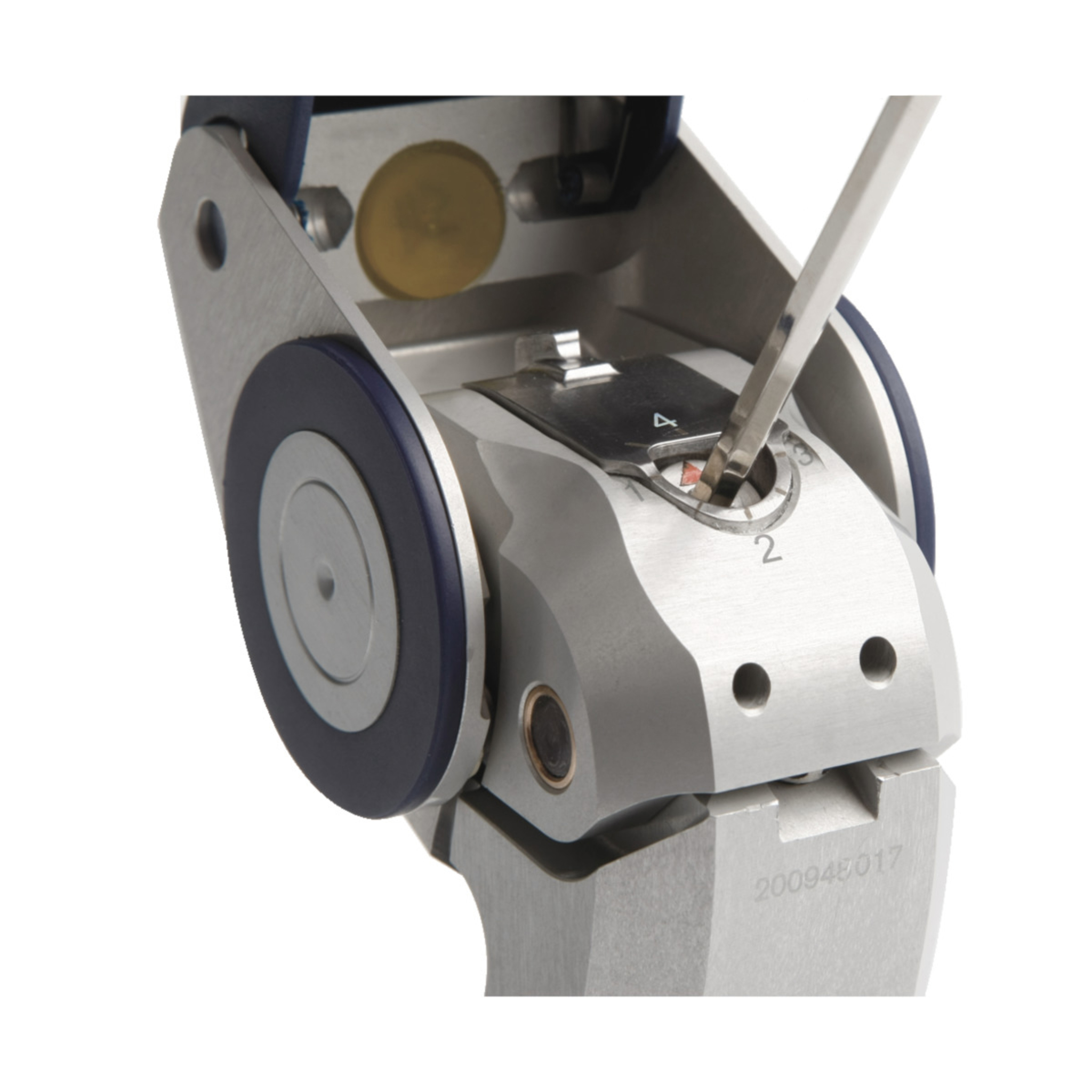

- Braking and stance flexion action can be easily adjusted
- User pulls on a cable to release the joint
- Not suitable for bilateral transfemoral amputees
- Includes 710H10=2X3 Adjustment Wrench and 4F18=N Lock Slide, Complete
Specifications
- Activity Level: K1, K2
- Knee Design Type: Single Axis, Friction Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 760
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 130 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
Sold each.
| HCPCS: | L5812, L5845, L5850, L5925 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK) |
| Activity Level: | K1 (Low), K2 (Moderate) |
| Swing Phase: | Friction |
| Stance Phase: | Friction |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Tube Clamp |
| Material: | Aluminum |
