3R80 Modular Knee Joint with Rotary Hydraulic
By
ottobock
3R80 Modular Knee Joint with Rotary Hydraulic
By
ottobock
- Select option
- 163 mm (6.4 in)
- 179 mm (7 in)
- Select option
- Male Pyramid Adapter
- Threaded Adapter
Product number:
3R80
| Part # | Description |
|---|
Product Information

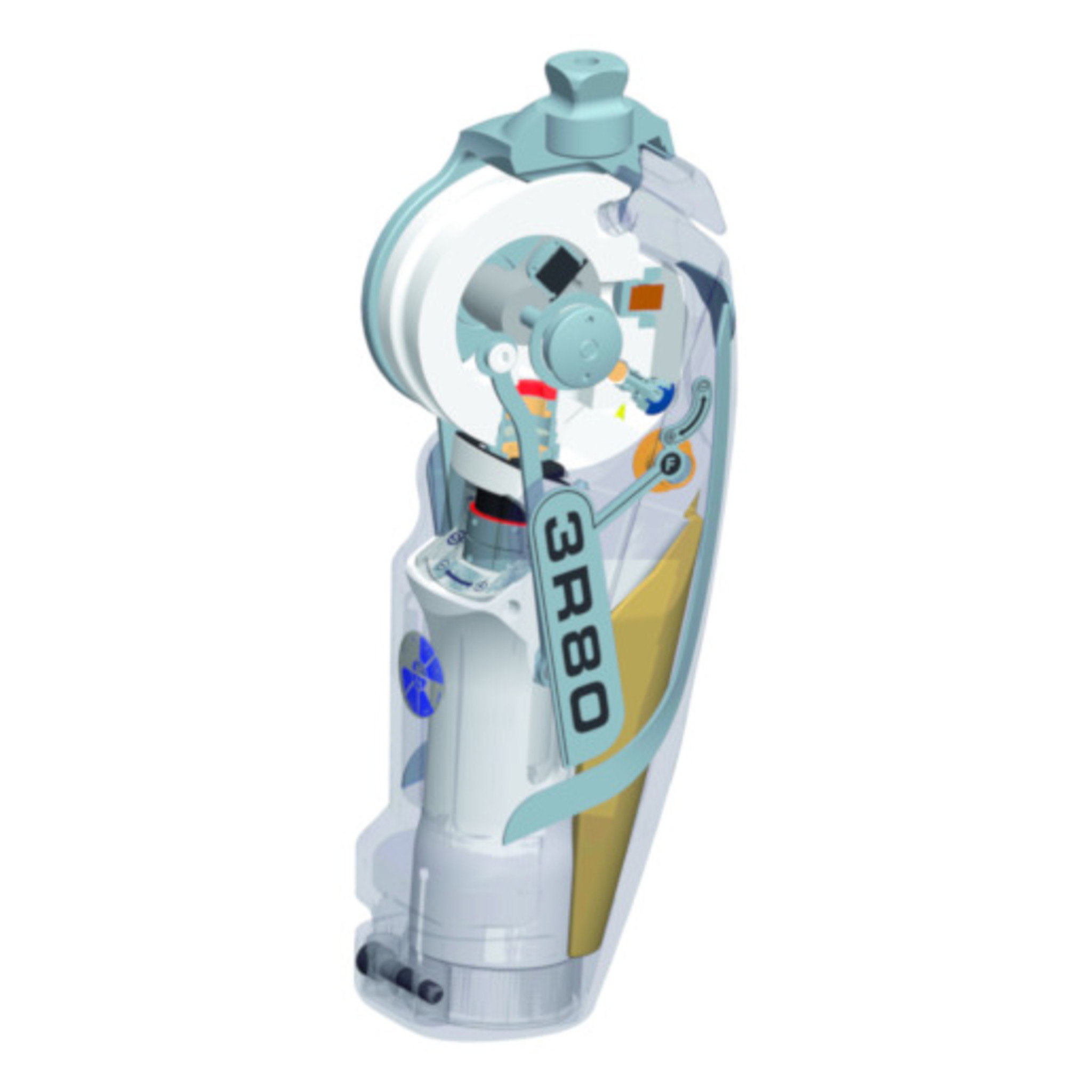

The 3R80 Modular Knee Joint with Rotary Hydraulic features rotary hydraulics that control stance and swing phase to prevent involuntary flexion of the knee joint. The flexion and extension resistance can be adjusted easily and independently.
- Manual lock
- Waterproof
- Durable construction
- Includes a 710H10=2x3 Adjustment wrench and 513D59=1.3x8.8x86 Compression spring
Specifications
- Activity Level: K3, K4
- Knee Design Type: Single Axis, Fluid Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Hydraulic
- Stance Phase: Hydraulic
- Control Frame Material: Aluminum
- Product Weight (g): 1240-1255
- Maximum User Weight: 330lbs (150kg)
- Maximum Knee Flexion Angle: 150 Degrees
- Proximal Connection: Refer to chart below
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
Sold each.
Manufacturer Recommended HCPCS: L5828, L5845, L5850, L5925
